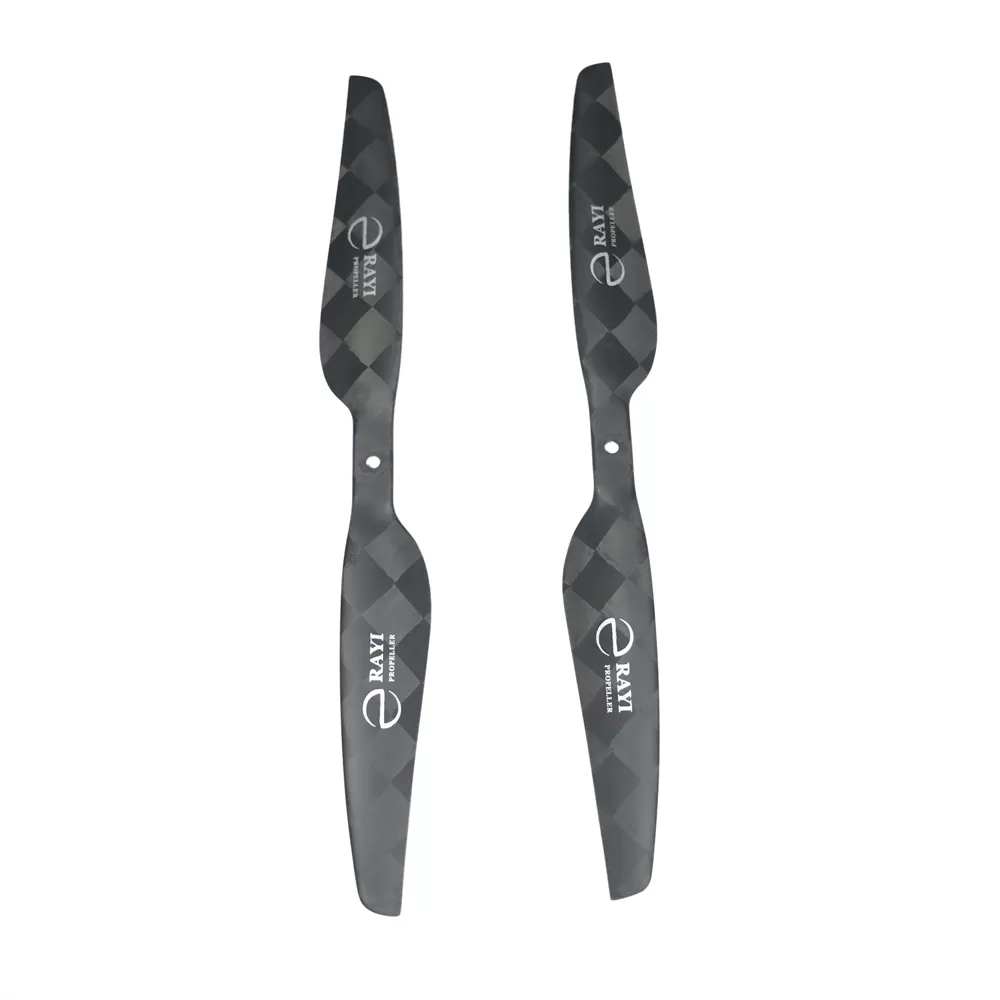

15x5 Favourable Carbon Fiber Straight CW CCW Drone Propeller

15x5 Favourable Carbon Fiber Straight CW CCW Drone Propeller

Ultra light, super strong, and high efficiency

  • Straight type 15*5 inch

    Price 42 usd/pair

Product Description

15x5 Favourable Carbon Fiber Straight CW CCW Drone Propeller

15x5 Carbon Fiber CW CCW 2-Blade Integrated Propeller for Drone UAV

Our 15x5 carbon fiber propeller is engineered for high performance, durability, and efficiency, making it ideal for professional drones and UAV applications. Manufactured with 38% carbon fiber content, it boasts higher strength, lower water absorption, and superior aerodynamic efficiency compared to other products in the industry. This propeller is widely used in firefighting, surveying, logistics, military applications, and university research projects.


Key Features:

High-Strength Carbon Fiber Construction – 38% carbon fiber content ensures exceptional durability and stiffness.
Low Water Absorption – Improved material composition prevents deformation in humid conditions.
Precise Dynamic Balance Inspection – Guarantees low flight noise and smooth operation.
Aerodynamic Efficiency – Reduces power consumption, improving battery life and flight time.
Lightweight with Strong Thrust – Provides stable and efficient propulsion.
Push-Type Quick Release Design – Easy assembly and disassembly for enhanced user convenience.
Versatile Applications – Compatible with various drones used for firefighting, surveillance, logistics, military operations, and research.
Perfect Replacement Part – An ideal upgrade or replacement for damaged propellers.

Technical Specifications:

  • Product Name: 15x5 Carbon Fiber CW/CCW 2-Blade Integrated Propeller

  • Model: 15X5Y

  • Diameter: 15 inches

  • Pitch: 5 inches

  • Material: Carbon Fiber & Epoxy (38% carbon fiber content)

  • Surface Treatment: Polished or Frosted

  • Weight: 14.5g (single)

  • Installation Method: Push-Type Quick Release

  • Applicable Models: Multi-Rotor & Fixed-Wing Drones

  • Thrust Limitation: ≤2000g

  • Optimum RPM: ≤6500 r/min

  • Operating Temperature: -40℃ to +60℃

  • Storage Temperature: -10℃ to +40℃

Available Sizes:

We offer a wide range of carbon fiber propellers to fit various drones and UAVs, including:
12x4", 14x8", 15x5", 16x6", 16x8", 16x5.5", 17x6", 17.5x6.5", 18x6.5", 19x6.2", 20x6.5", 22x7.8", 22x9", 24x7.8", 24x15", 26x8.2", 28x12", 29x9.6", 30x9.8", 30x14", 32x12", 32.5x15.6", 34x12", 36x18", 40x13", 42x14", 47.5x18", 50x19", 52x19", 57x19", 60x19", 64x20", 72x31".

💡 We accept customized sizes and designs (OEM & ODM available).


Why Choose Our Carbon Fiber Propellers?

🔹 Industry-Leading Cost-Performance Ratio – Recognized for high quality at a competitive price.
🔹 Stable & Efficient Flight Performance – Reduces drone vibration and enhances power efficiency.
🔹 Durable & Weather-Resistant – Designed to withstand various environmental conditions.
🔹 Quick Installation & Secure Fit – Push-type quick-release mechanism for hassle-free use.

📦 Package Includes:
✔ 1 x CW Propeller
✔ 1 x CCW Propeller

Upgrade your drone with high-efficiency carbon fiber propellers today! 🚀


Technical Parameter

15X5 Ultralight Carbon Fiber Integrated CW/CCW Drone Propeller
PARAMETER TABLE
voltagecurrentthrusttorquerotation speedshaft poweraxial forcethrottle
(V)(A)(g)(N.M)(rpm)(W)(G/W)(%)
14.41.172300.05232012.8717.8730
14.41.663150.07263318.7516.8035
14.42.223930.08292725.1315.6440
14.42.894780.10321532.6514.6445
14.43.96010.12357544.5413.4950
14.45.337740.15395660.8912.7155
14.46.599100.17422276.0311.9760
14.47.8710370.19450988.7511.6865
14.49.211490.214751102.4711.2170
14.410.7912760.235009120.6210.5875
14.412.4913990.255249136.8410.2280
14.414.1815080.275483155.009.7385
14.416.1216470.295695174.719.4390
14.418.1717780.325906194.789.1395
14.421.2119420.356192223.668.68100



Want to Choose the Right Propeller for You?

Take a quick test to find the right propeller for you.

If You have any Questions, Please Contact Us

If You have any Questions, Please Contact Us

Warning

1. Please be careful when using the propellers as the spinning propellers may cause serious injury.
2. The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond thelimits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users’account.
3. Please make sure all the accessories are mounted properly.
4. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
5. For storage, please keep them away from hostile environments including but not limited to that of H2O, SO2, NO2, Cl2, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
6. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
7. Please use the propellers in compliance with local laws and regulations.

8.Please do not use it for military purposes, otherwise any risk and responsibility caused will be borne by the customer.
