Ultra light, super strong, high efficiency
Straight type 24*15 inch
Price 175 usd/pair
Product Description
Specification

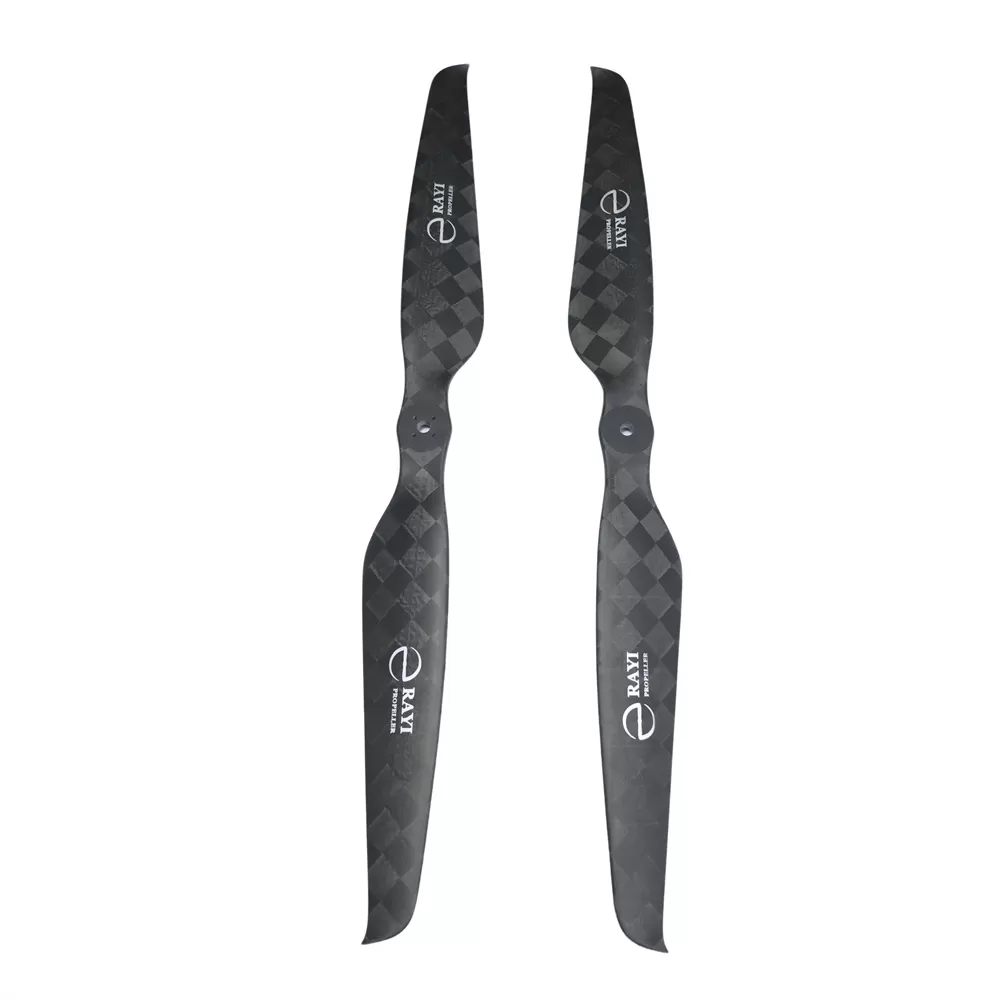

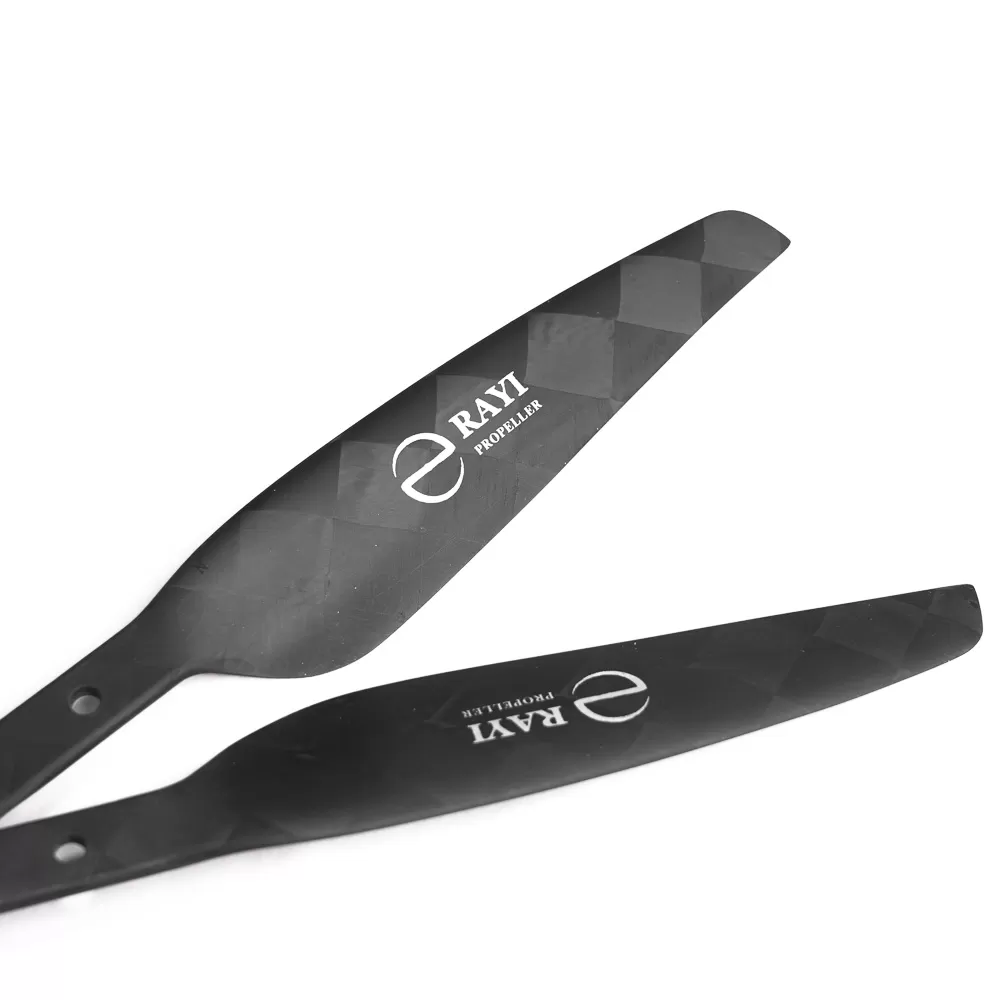

Product name: 24*15 inch Ultra light carbon fiber integrated CW/CCW Propeller
Propeller type: 2 blades-integrated
Includes: 1 piece CW and 1 piece CCW propeller
Specifications: IIXP,IIXE
Model: 24*15Y
Diameter (inches): 24
Pitch (inches): 15
Material: carbon fiber and epoxy
Surface Treatment : Polished or Frosted
Single net weight: 44.5g
Installation method: Screw fixation
Applicable models: Multi rotor,Vertical fixed wing
Thrust Limitation: ≤5000g
Optimum RPM: ≤2500r/min
Working ambient temperature: -40℃~+60℃
Storage temperature: -10℃~+40℃
Technical Parameter
| 24X15 Ultralight Carbon Fiber Integrated CW/CCW Drone Propeller | |||||||
| PARAMETER TABLE | |||||||
| voltage | current | thrust | torque | rotation speed | shaft power | axial force | throttle |
| (V) | (A) | (g) | (N.M) | (rpm) | (W) | (G/W) | (%) |
| 44.4 | 1.9 | 1000 | 0.3 | 1150 | 36.12 | 27.68 | 45 |
| 44.4 | 2.9 | 1500 | 0.4 | 1360 | 56.96 | 26.34 | 50 |
| 44.4 | 3.8 | 2080 | 0.6 | 1603 | 100.70 | 20.66 | 55 |
| 44.4 | 5.0 | 2500 | 0.8 | 1765 | 147.84 | 16.91 | 60 |
| 44.4 | 6.5 | 3000 | 0.9 | 1947 | 183.47 | 16.35 | 65 |
| 44.4 | 7.1 | 3510 | 1.1 | 2000 | 230.34 | 15.24 | 70 |
| 44.4 | 9.3 | 4000 | 1.3 | 2230 | 303.53 | 13.18 | 75 |
| 44.4 | 10.4 | 4500 | 1.4 | 2265 | 332.00 | 13.55 | 80 |
| 44.4 | 12.5 | 5000 | 1.7 | 2420 | 430.74 | 11.61 | 85 |
| 44.4 | 15.7 | 5500 | 1.9 | 2576 | 512.44 | 10.73 | 90 |
| 44.4 | 17.7 | 6020 | 2.2 | 2690 | 619.61 | 9.72 | 95 |
| 44.4 | 18.9 | 6530 | 2.3 | 2730 | 657.41 | 9.93 | 100 |
Want to Choose the Right Propeller for You?
Take a quick test to find the right propeller for you.
Feature
Our carbon propellers use modified materials, with extremely low water absorption, 38% carbon fiber content, higher strength than other peer products, and high propeller efficiency. High quality and low price, it is recognized in the industry as the most cost-effective product series.
1. With fine workmanship and exquisite appearance.
2. The blades have passed precise dynamic balance inspection, and the flight noise is low.
3. High aerodynamic efficiency, low power consumption, improve battery life.
4. Light and strong pulling force, and excellent balance.
5. Adopts push-type quick release design, which is easy to assemble and disassemble.
6. Adapted to various types of drones, widely used in firefighting, surveying, monitoring, logistics, express delivery, military and police equipment, and university research projects
7. It is a perfect replacement for the damaged parts.
dimensions:
We have12X4inch,14X8inch,15X5inch,16X6inch,16X8inch,16X5.5inch,17X6inch,17.5X6.5inch,18X6.5inch, 19X6.2inch20X6.5inch,22X7.8inch,22X9inch,24X7.8inch,24X15inch,26X8.2inch,28X12inch,28X12inch,29X9.6inch,
30X9.8inch,30X14inch,32X12inch,32.5X15.6inch,34X12inch,36X18inch,40X13inch,42X14inch,47.5X18inch,
50X19inch,52X19inch,57X19inch,60X19inch,64X20inch,72X31inch carbon fiber propellers for various drone or UAV
Accept customized size and design
Notice: Accepted OEM &ODM
If You have any Questions, Please Contact Us
If You have any Questions, Please Contact Us
Warning
1. Please be careful when using the propellers as the spinning propellers may cause serious injury.
2. The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond thelimits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users’account.
3. Please make sure all the accessories are mounted properly.
4. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
5. For storage, please keep them away from hostile environments including but not limited to that of H2O, SO2, NO2, Cl2, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
6. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
7. Please use the propellers in compliance with local laws and regulations.
8.Please do not use it for military purposes, otherwise any risk and responsibility caused will be borne by the customer.
