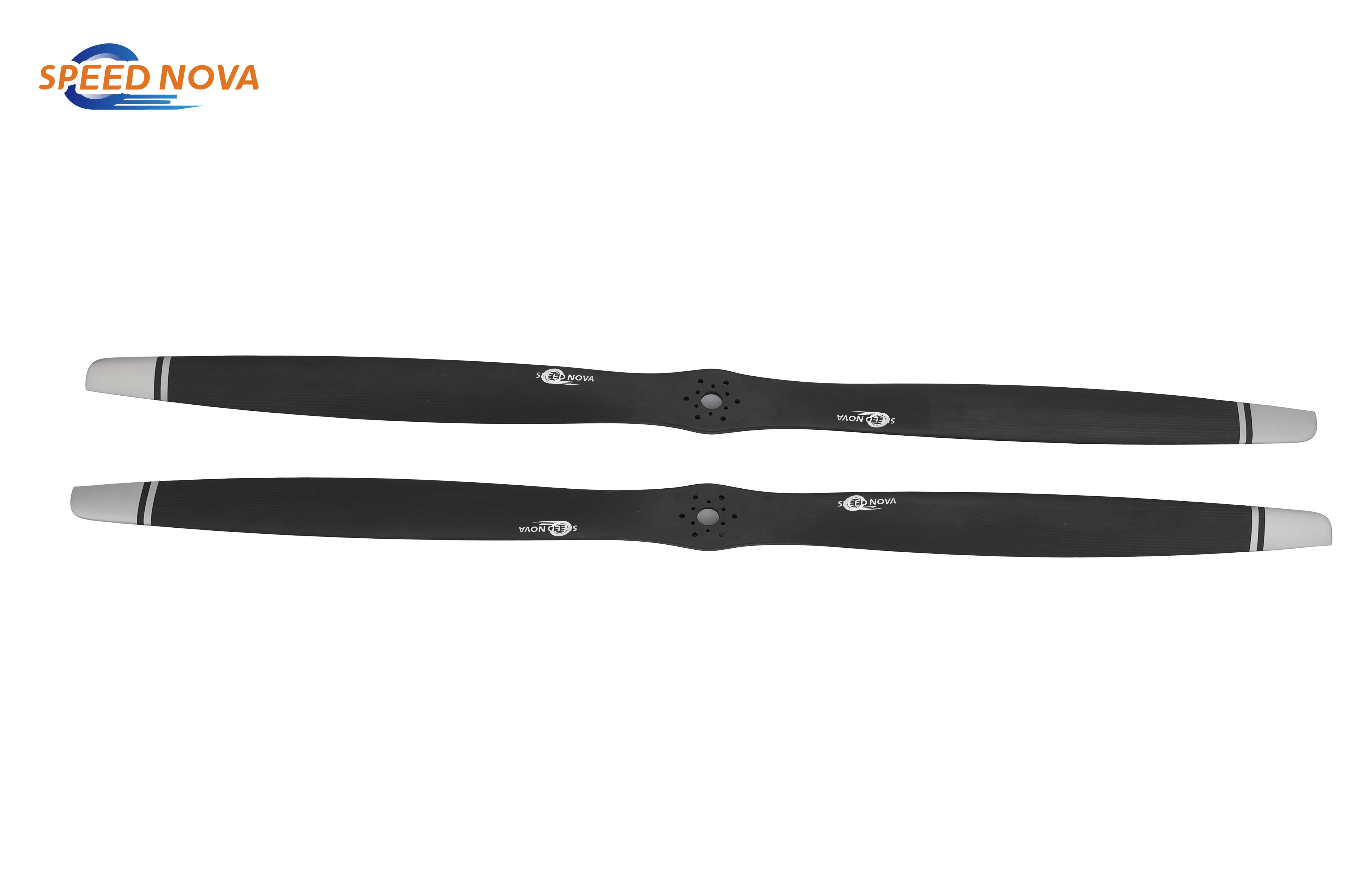

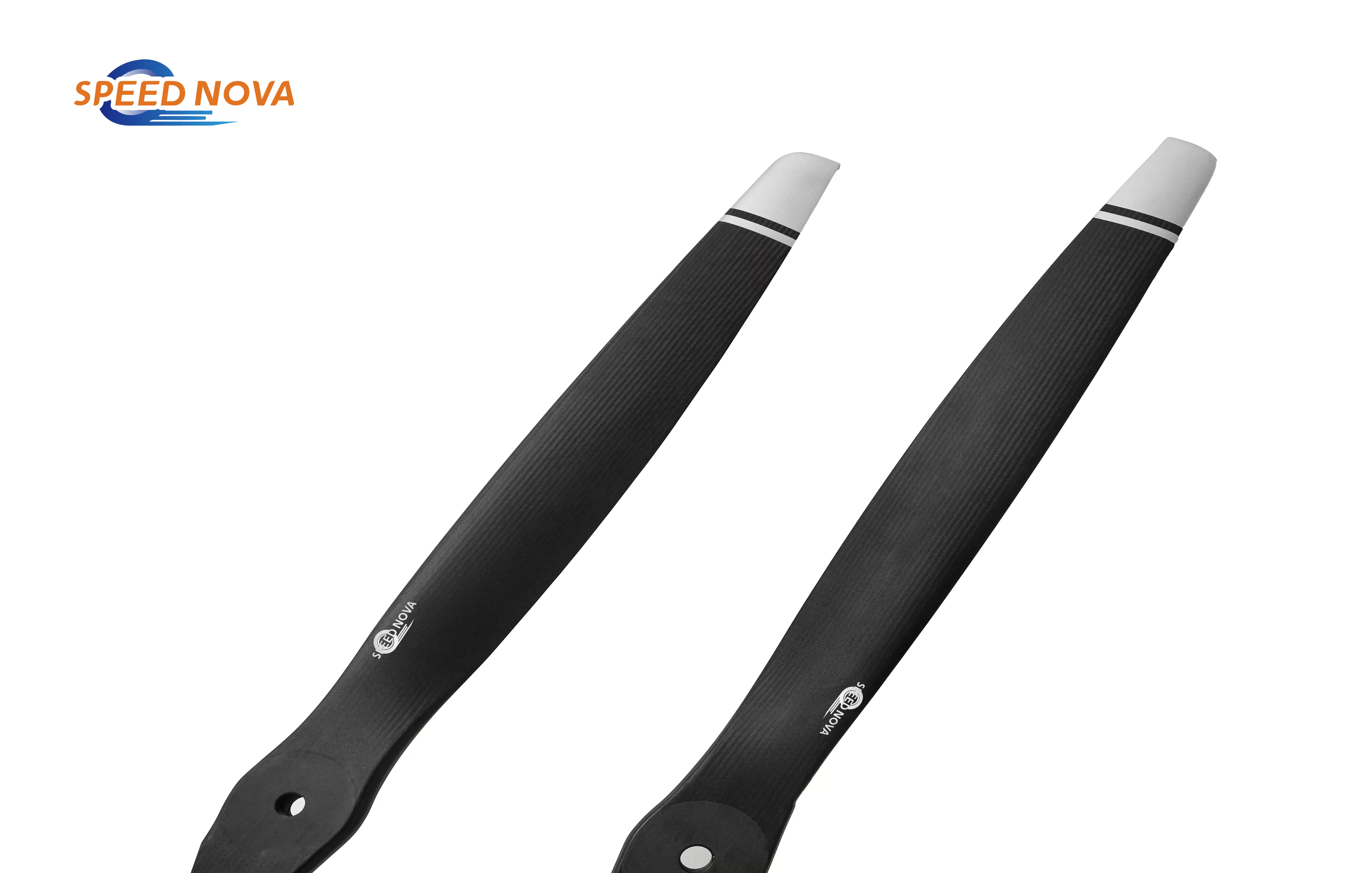

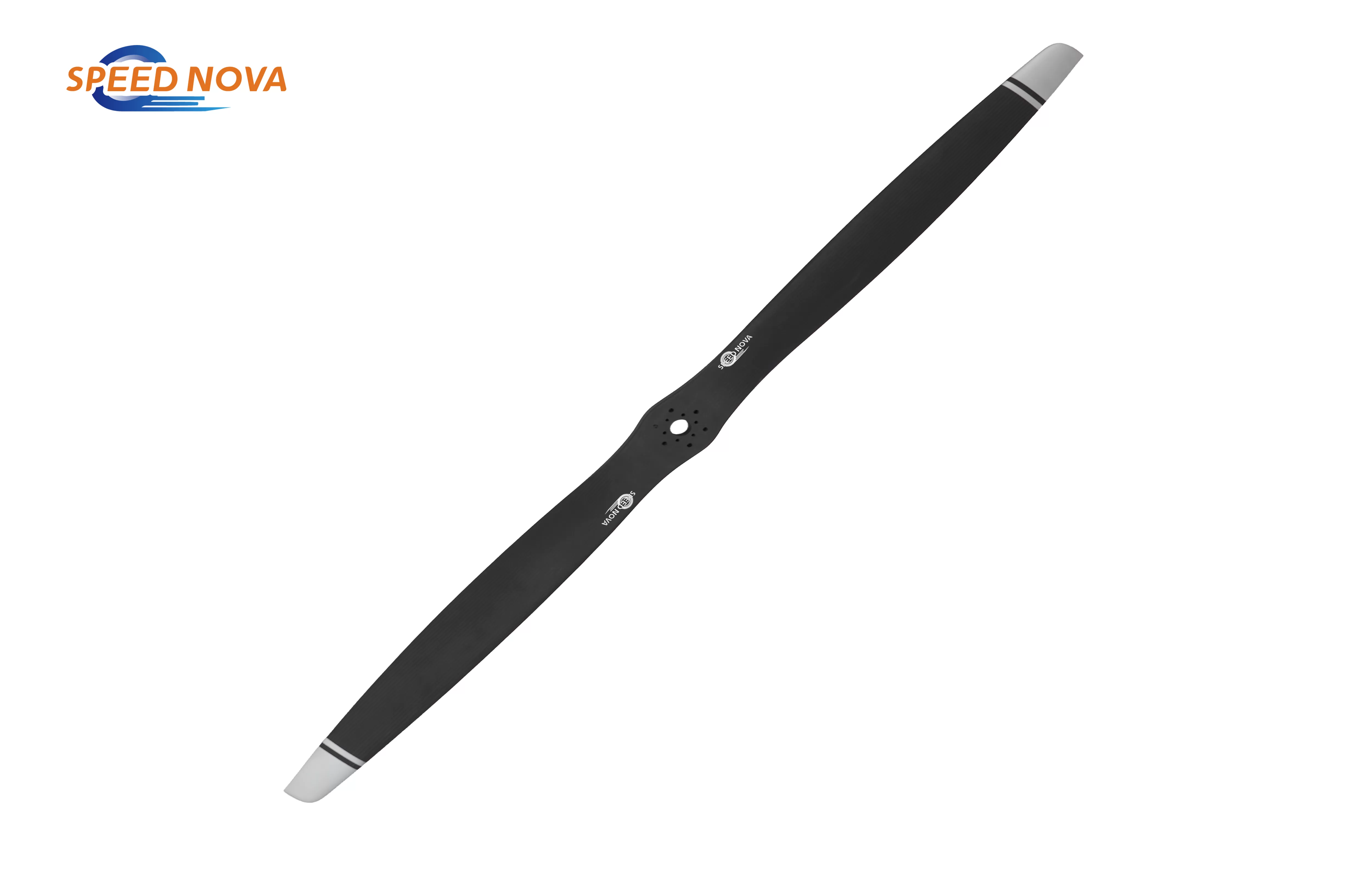

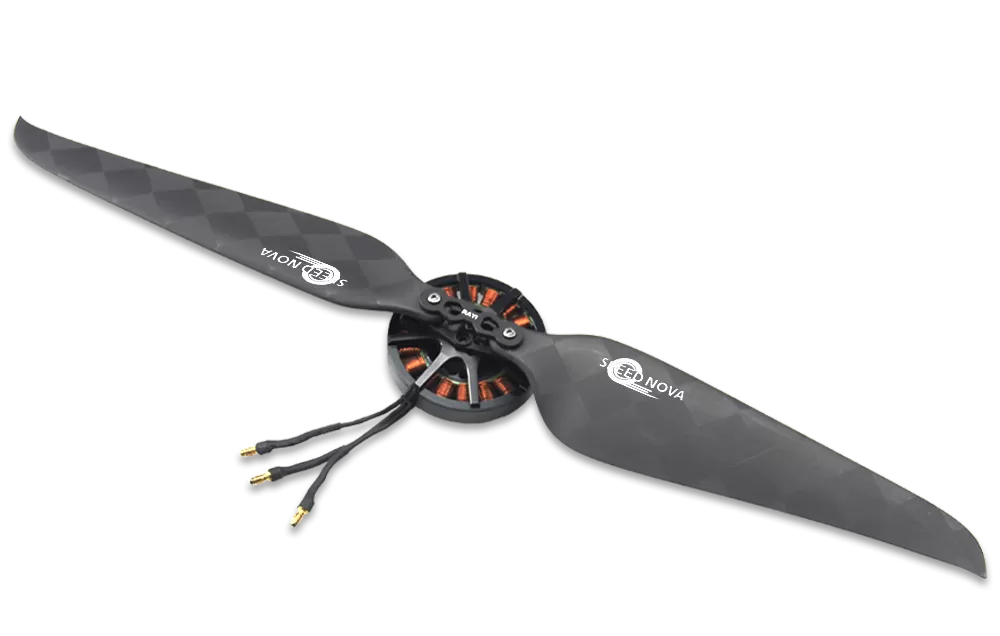

Big size 72x31 Carbon Fiber 72 inch Propeller for manned aircraft

Product Description

Technical Parameter

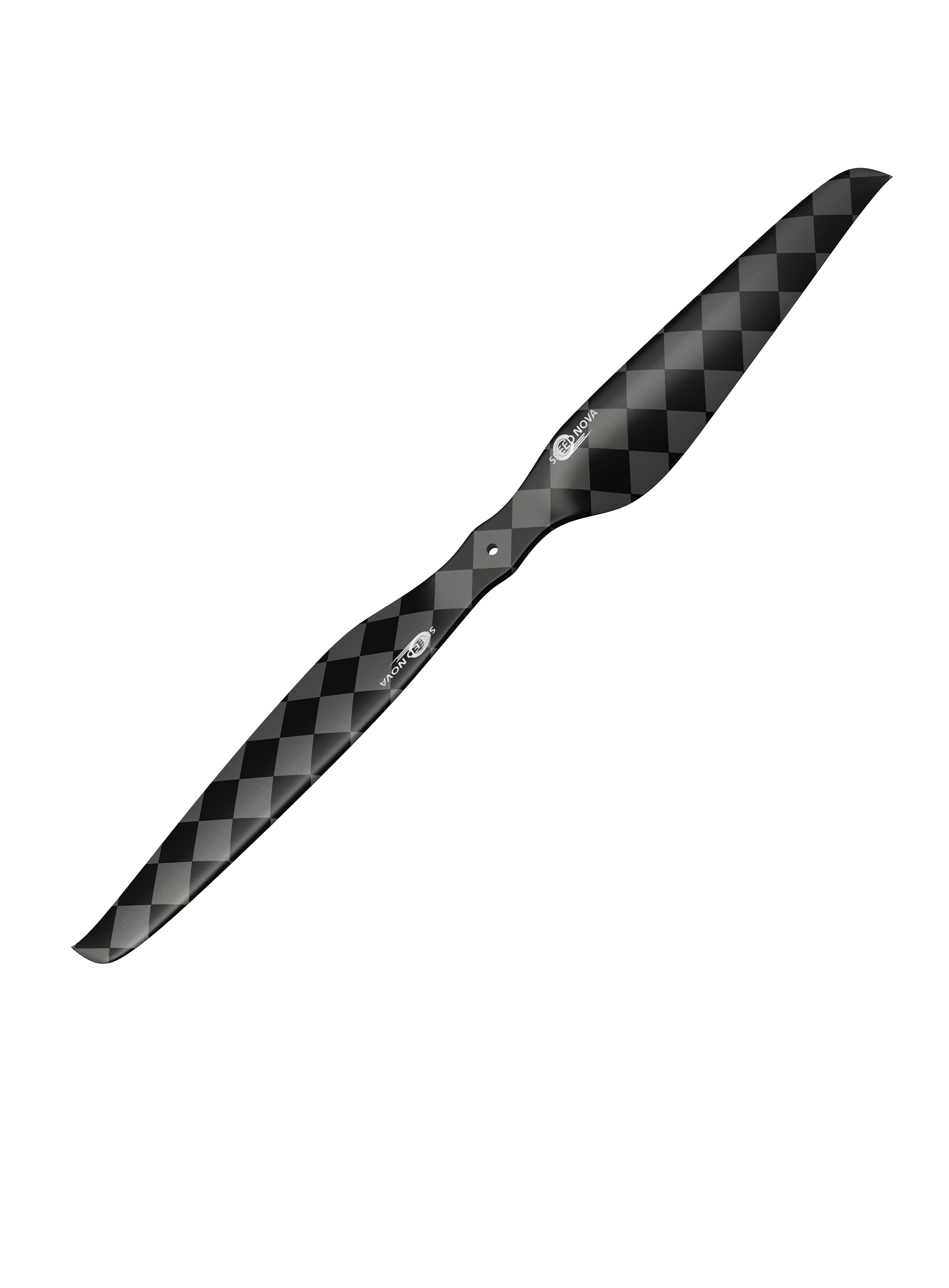

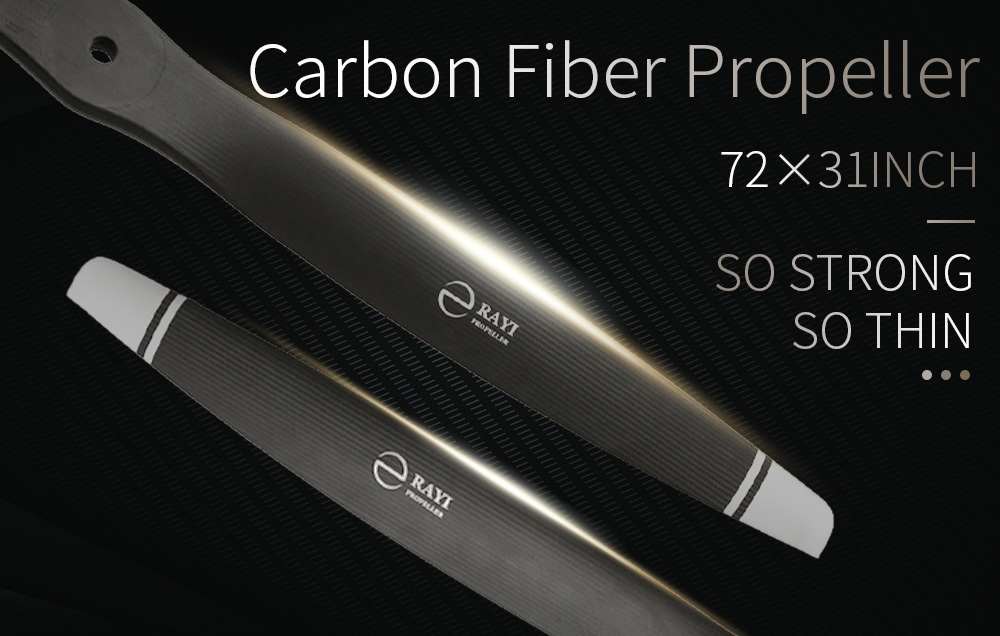

72X31 Ultralight Carbon Fiber lntegrated CW/CCW Drone Propeller
PARAMETERTABLE
voltage	current	thrust	torque	rotation speed	shaft power	axial force	throttle
(V)	(A)	(g)	(N.M)	(rpm)	(w)	(G/W)	(%)
94.74	0.2	337	0.33	96	3.30	102.22	5
94.71	0.74	1518.4	1.33	225	31.28	48.54	10
94.67	1.78	3445.53	3.04	336	106.84	32.25	15
94.65	3.62	6065.93	5.36	449	251.93	24.08	20
94.70	6.68	9974	8.53	573	511.56	19.50	25
94.67	10.44	14196.85	11.83	680	842.11	16.86	30
94.61	16.64	19644.87	16.64	793	1381.90	14.22	35
94.62	23.42	24897.56	20.85	905	1975.23	12.60	40
94.63	31.66	30699.67	24.81	976	2535.26	12.11	45
94.55	41.48	37221.2	29.85	1077	3365.94	11.06	50
94.50	55.21	45130.81	36.62	1184	4539.59	9.94	55
94.47	70.72	53301.13	43.83	1280	5874.46	9.07	60
94.39	88.97	60595.21	50.92	1366.00	7281.87	8.32	65.00
94.30	106.78	68077.19	56.72	1450.00	8611.40	7.91	70.00
94.26	130.65	77726.07	64.18	1534.00	10307.62	7.54	75.00
94.19	154.52	84137.00	70.33	1605.00	11818.16	7.12	80.00
94.17	191.92	92929.07	78.22	1667.00	13651.25	6.81	85.00
94.14	222.78	97721.07	83.46	1720.00	15030.53	6.50	90.00
94.11	227.90	96365.06	82.03	1721.00	14781.06	6.52	95.00

If You have any Questions, Please Contact Us

Fill in the Demand Form

Warning

1. Please be careful when using the propellers as the spinning propellers may cause serious injury.
2. The structural strength of the propellers are fully tested. Please make sure the propellers are not used beyond thelimits. Please do not tempt to test the strength of the propellers by bending them by hands. Any damage or loss from improper use will be on the users’account.
3. Please make sure all the accessories are mounted properly.
4. Please check on the propellers before flight and make sure they are in good condition. Please replace propellers with new ones if fault is found with them.
5. For storage, please keep them away from hostile environments including but not limited to that of H2O, SO2, NO2, Cl2, organosilicon, cyanogroup and phenol. Ambient temperature is recommended between 0 and 40℃ at less than 80% humidity.
6. Please apply anaerobic screw locking glue of medium or above strength when install propellers onto motors.
7. Please use the propellers in compliance with local laws and regulations.

8.Please do not use it for military purposes, otherwise any risk and responsibility caused will be borne by the customer.

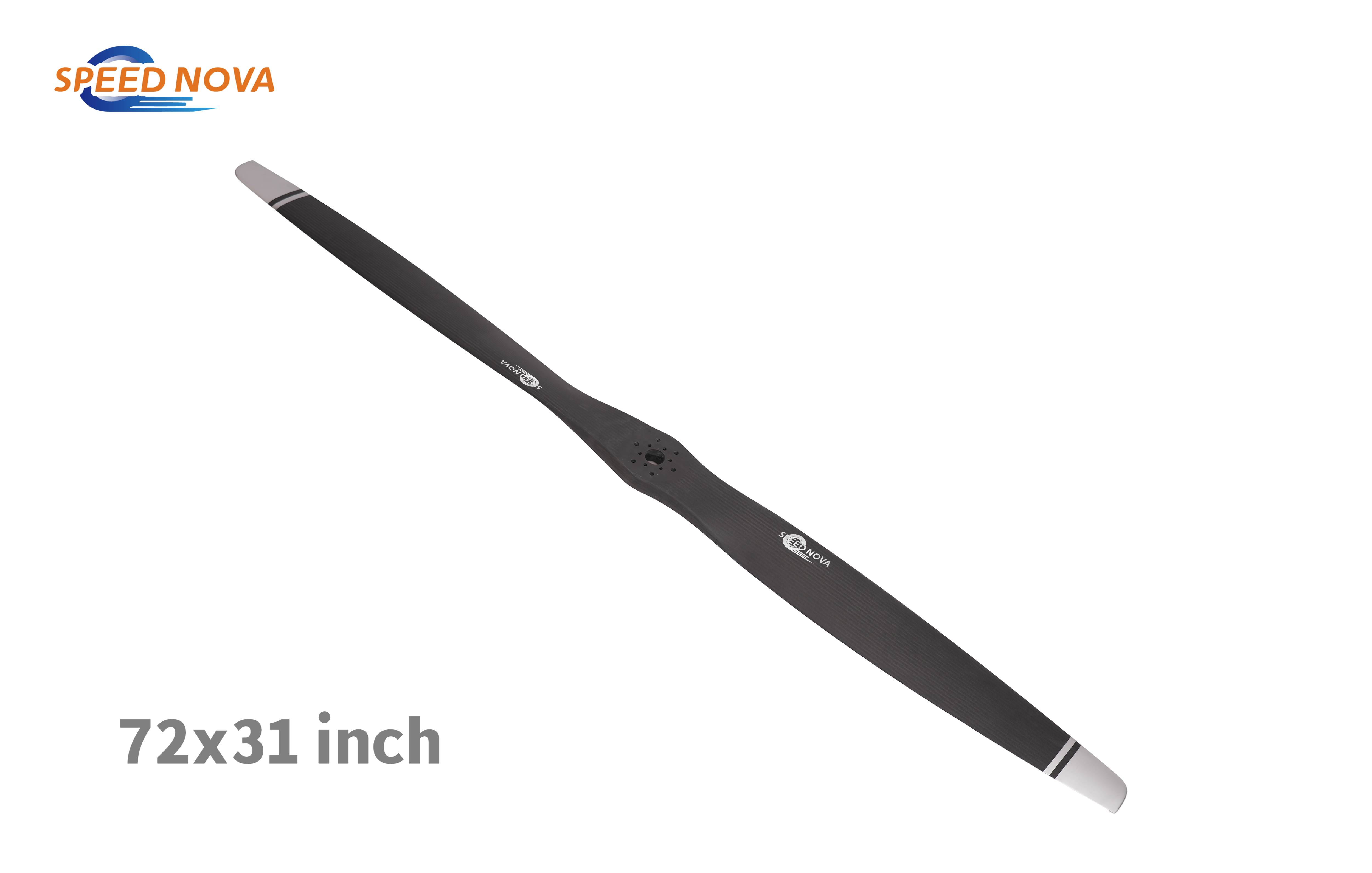

72x31 Carbon Fiber Integrated 72 inch big Propeller for manned aircraft
